Ball-Lok® Quick Release Pins
Standard Receptacle
Configure Part Number

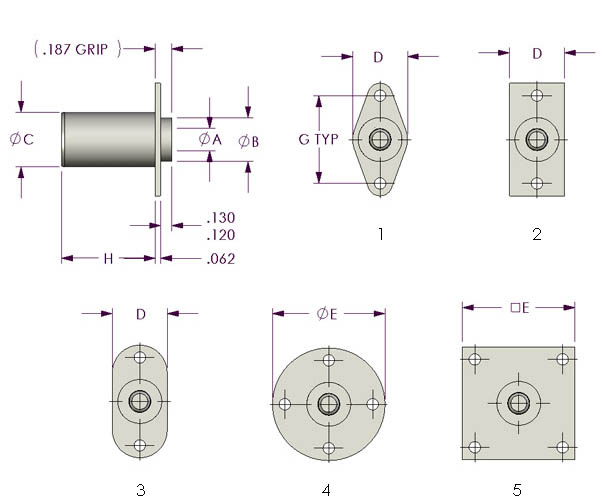

A
- - - - - - -
| PIN NO. | A+.003 / -.000 | B-1 +.001 / -.004 | B 2 | C | D | E | G | H | APPROX. WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 3 | 0.19 | 0.375 | 0.5 | 0.63 | 0.63 | 1.28 | 1 | 1.06 | .080 LBS |
| 4 | 0.25 | 0.375 | 0.5 | 0.63 | 0.63 | 1.28 | 1 | 1.06 | .085 LBS |
| 5 | 0.312 | ---- | 0.5 | 0.63 | 0.63 | 1.28 | 1 | 1.06 | .090 LBS |
| 6 | 0.375 | ---- | 0.5 | 0.63 | 0.63 | 1.28 | 1 | 1.06 | .095 LBS |
| 7 | 0.437 | 0.625 | ---- | 0.75 | 0.75 | 1.41 | 1.125 | 1.25 | .100 LBS |
| 8 | 0.5 | 0.625 | ---- | 0.75 | 0.75 | 1.41 | 1.125 | 1.25 | .110 LBS |
WEIGHTS ARE CALCULATED USING STEEL RECEPTACLES WITH NO. 4 MOUNTING PLATES.
